Thông tin chi tiết sản phẩm:
|
| Mã HS: | 3701302400 | Kiểu: | Tấm CTP một lớp |
|---|---|---|---|
| thời gian phát triển: | 25±5 giây | độ dày: | 0,15/ 0,25/ 0,30 mm |
| Quy mô sản xuất tối đa: | 1680*1480mm | Màu sắc: | Màu xanh da trời |
| Hạn sử dụng: | 18 tháng | Chiều rộng cuộn tối đa: | 1350mm |

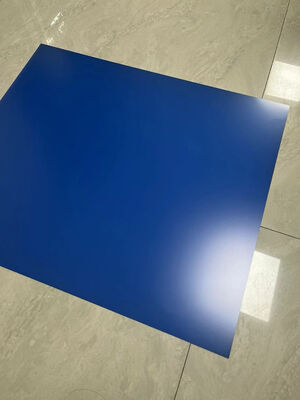

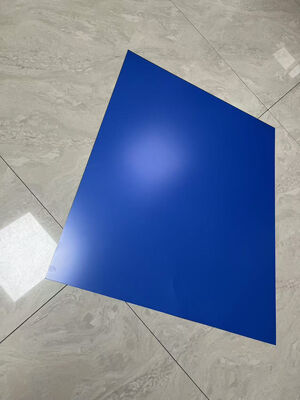

Thermal CTP Plate
Maximum Production Size 1680 × 1480 mm
The Thermal CTP Plate is an advanced printing solution designed for modern commercial and industrial printing environments. This high-performance Thermal Computer to Plate Plate offers exceptional precision, durability, and ease of use, making it ideal for optimizing workflow and achieving outstanding print quality.
Available in multiple thickness options (0.15 mm, 0.25 mm, and 0.30 mm) to suit specific printing requirements, press conditions, and desired results. The distinctive blue color aids in visual recognition and workflow consistency.
Key Features
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Coil Width | 1350 mm |
| Material | Aluminum |
| Thickness | 0.15 / 0.25 / 0.30 mm |
| HS Code | 3701302400 |
| Maximum Production Size | 1680 × 1480 mm |
| Development Time | 25±5 seconds |
| Type | Single Layer CTP Plate |
| Color | Blue |
| Printing Type | Offset Printing |
| Exposure Energy | 110-130 Mj/c㎡ |
Applications
The PLATE-CD Thermal CTP Plate (model CD-R) is designed for professional use across various printing industries. This high-performance plate offers exceptional quality and reliability for commercial printing houses, packaging manufacturers, and newspaper printing facilities.
Ideal Application Scenarios:
With a supply capacity of 10,000,000 sqm per month and minimum order quantity of 5000 sqm, this plate efficiently caters to both small and large-scale production demands.
Packaging & Shipping
Product Packaging
Each Thermal CTP Plate is wrapped in protective film to prevent scratches and dust accumulation. Plates are placed in sturdy, cushioned boxes with foam inserts to absorb shocks and vibrations. The moisture-resistant packaging maintains plate quality during transit.
Packaging Details:
Shipping Information
We offer reliable worldwide shipping via air freight or sea freight. All shipments are carefully handled and fully tracked. Delivery time is typically within 10 working days, with tracking information provided for order monitoring.
